Ducted and Split System Air Conditioning in Tarragindi

Precision Electrical & Air has successfully completed the installation of dual air conditioning systems at a residential property in Tarragindi. This project involved the provision and installation of a Daikin ducted system on the upper level, alongside a Daikin high-wall split system located in the downstairs living room.

Thorough Installation of the Daikin FDYAN160AV1 16.0kW Ducted Air Conditioning System

Precision Electrical & Air executed an intricate installation of the Daikin FDYAN160AV1 16.0kW ducted air conditioning system. The indoor unit was expertly positioned within the ceiling void, while the condenser was securely mounted on the front balcony wall with rubber feet to enhance stability. All connections between the indoor and outdoor units were discreetly concealed within ductwork as they exited from the ceiling space.

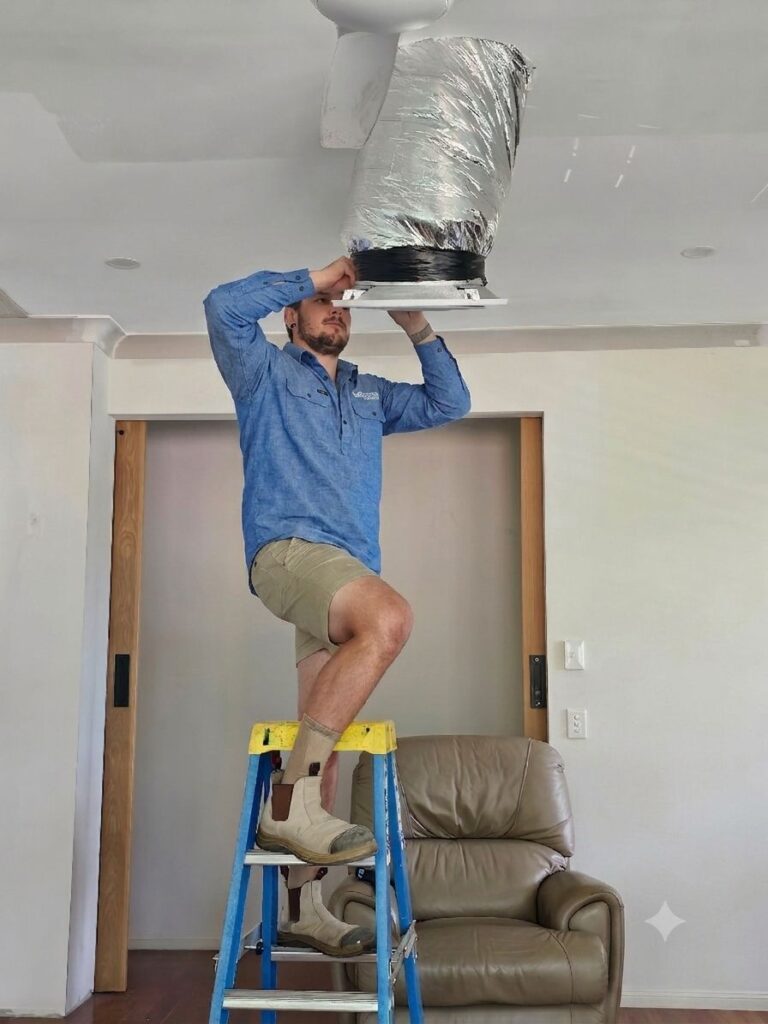

To facilitate efficient water drainage, two drainage systems were established from the indoor unit and safety tray, directing water to the external gutter. The installation process included careful placement of ducting, branch takeoffs, zone motors, and air plenums throughout the ceiling space, ensuring seamless integration with the indoor unit. A return air grille was strategically positioned in the upstairs hallway to optimise the system’s airflow.

A dedicated electrical sub-circuit was created, extending from the switchboard to the outdoor unit, which featured an NHP isolation switch conveniently located next to the condenser. In the upstairs hallway, a MyZone Multipoint touchpad zone controller was installed, allowing for straightforward temperature management linked directly to the zone motors.

Expert Installation of the Daikin FTXV80W 8.0kW High-Wall Split System Air Conditioning

In the downstairs living area, the Daikin FTXV80W 8.0kW high-wall reverse cycle split system was installed with precision. New ducting, interconnect cables, and copper pair coils were integrated to connect the indoor and outdoor units, with the condenser mounted on rubber feet to ensure operational stability.

A dedicated electrical circuit was established from the switchboard to the outdoor condenser, featuring an NHP isolation switch for enhanced safety. An Aspen Silent+ Mini condensation pump was positioned beneath the indoor unit and connected to the nearest stormwater downpipe, facilitating efficient drainage. The system underwent comprehensive commissioning after installation to ensure optimal performance.

Experience Enhanced Comfort with Zoned Air Conditioning Solutions

With these installations, the property now enjoys zoned ducted heating and cooling on the upper level, complemented by a dedicated high-wall unit in the downstairs living space. Both Daikin systems were supplied and installed in strict accordance with manufacturer specifications, ensuring that the necessary electrical circuits and drainage systems were effectively implemented.

For professional ducted or split system air conditioning installation services in Tarragindi and the surrounding suburbs of Brisbane Southside, contact Precision Electrical & Air at 0423 163 359.
