Ducted and Split System Air Conditioning in Tarragindi

Precision Electrical & Air has successfully completed the installation of dual air conditioning systems at a residential property in Tarragindi. This project involved providing and installing a Daikin ducted system on the upper level and a Daikin high-wall split system in the downstairs living room.

Thorough Installation of the Daikin FDYAN160AV1 16.0kW Ducted Air Conditioning System

Precision Electrical & Air carried out a detailed installation of the Daikin FDYAN160AV1 16.0kW ducted air conditioning system. The indoor unit was optimally positioned within the ceiling space above the void, while the condenser was securely mounted on the front balcony wall, using rubber feet for added stability. All connections between the indoor and outdoor units were meticulously concealed within ductwork exiting from the ceiling space.

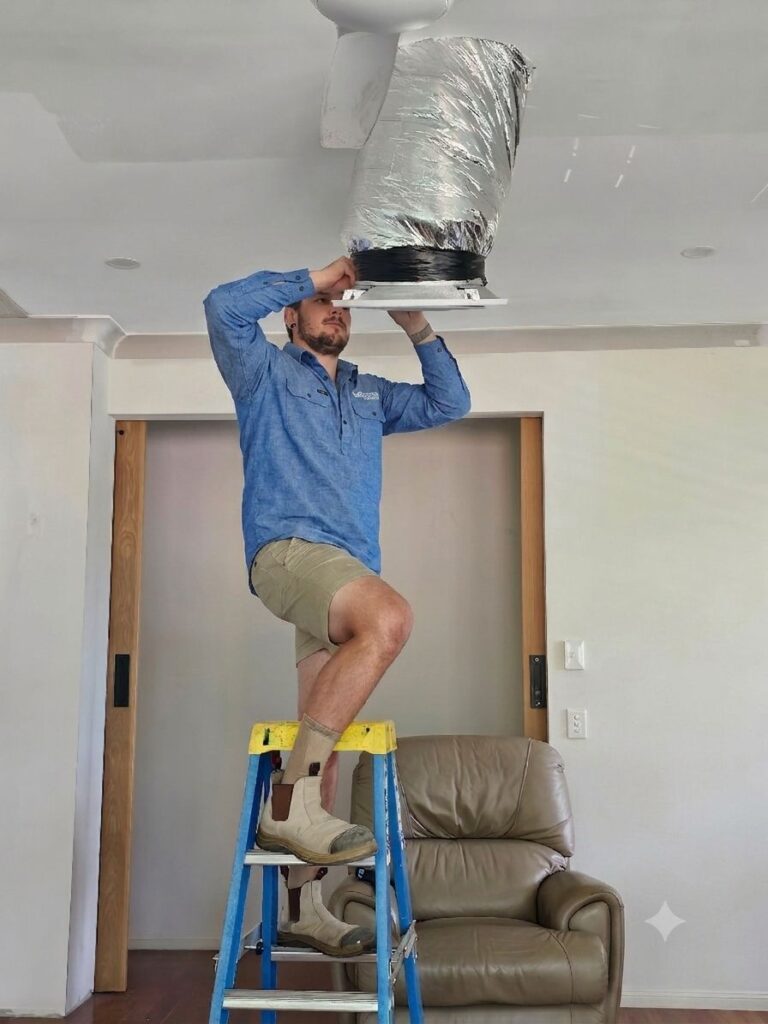

To facilitate effective water drainage, two drainage systems were established from the indoor unit and safety tray, directing water to the external gutter. The installation featured precise placement of ducting, branch take-offs, zone motors, and air plenums throughout the ceiling space, ensuring seamless integration with the indoor unit. A return air grille was installed in the upstairs hallway to optimise airflow throughout the system.

A dedicated electrical sub-circuit was constructed, running from the switchboard to the outdoor unit, which included an NHP isolation switch conveniently located next to the condenser. In the upstairs hallway, a MyZone Multipoint touchpad zone controller was installed, allowing for intuitive temperature management directly linked to the zone motors.

Expert Installation of the Daikin FTXV80W 8.0kW High-Wall Split System Air Conditioning

In the downstairs living room, the Daikin FTXV80W 8.0kW high-wall reverse cycle split system was installed with precision. New ducting, interconnect cables, and copper pair coils were added to link the indoor and outdoor units, with the condenser also mounted on rubber feet for operational stability.

A dedicated electrical circuit was established from the switchboard to the outdoor condenser, which featured an NHP isolation switch for enhanced safety. An Aspen Silent+ Mini condensation pump was installed beneath the indoor unit and connected to the nearest stormwater downpipe, ensuring efficient drainage. Upon completion, the system underwent comprehensive commissioning to verify optimal performance.

Enhance Your Comfort with Customised Zoned Air Conditioning Solutions

These installations provide the property with zoned ducted heating and cooling on the upper level, complemented by a dedicated high-wall unit in the downstairs living area. Both Daikin systems were supplied and installed in strict accordance with manufacturer specifications, ensuring that the right electrical circuits and drainage systems were implemented.

For professional ducted or split system air conditioning installation services in Tarragindi and the surrounding suburbs of Brisbane Southside, contact Precision Electrical & Air at 0423 163 359.
