Shed Wiring Tips: Essential Advice for Electricians

If you have a shed on your acreage property and find yourself tired of relying on extension leads from your house, it is vital to consider having it wired safely and correctly. Whether your storage shed requires just a light and a power point, or if you have a fully equipped workshop housing welders and compressors, following the proper procedure is essential. In NSW, the only lawful and safe method to accomplish this is by hiring a licensed electrician who can ensure all installations meet legal and safety standards.

This comprehensive guide details the steps required to supply power to your shed, outlines what your electrician needs to install, and provides a cost estimate for the Mid North Coast area, helping you plan your project effectively.

Kick Off Your Shed Wiring Project with the Right Cable Run Strategy

The most important aspect of any shed wiring project is establishing a dependable power source that connects from your main switchboard to your shed. Depending on your property’s layout, this distance can significantly vary, ranging from 30 to over 100 metres. The longer the cable run, the larger the cable size required to effectively manage voltage drop, ensuring that your shed receives the necessary power efficiently and consistently.

You essentially have two main options for your cable run:

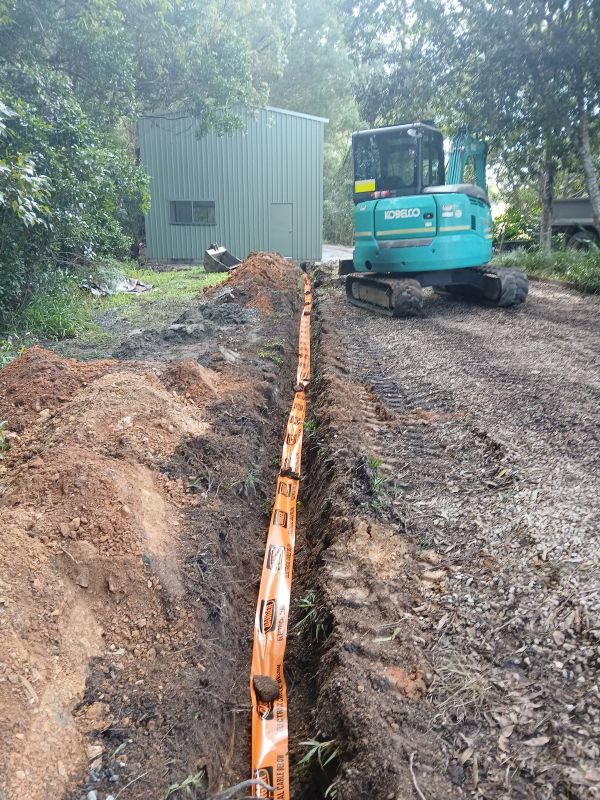

• Underground cable run — This option is the preferred and most visually appealing choice. A licensed electrician will install heavy-duty cable through orange conduit, buried at least 500mm deep (or deeper if vehicles are expected to traverse the area). This method protects the cable from adverse weather conditions, wildlife, and falling branches, making it the ideal solution for most acreage properties.
• Overhead cable run — Though less common in contemporary installations, this method may be necessary if you encounter solid rock or difficult terrain that complicates trenching. Overhead installations must adhere to specific clearance heights and support poles, which can significantly increase overall costs.

For most properties located in Bellingen, Coffs Harbour, and the Mid North Coast, the underground option remains the most efficient choice. Your electrician in Bellingen can evaluate your site and recommend the most effective route for your installation, ensuring optimal performance and safety.

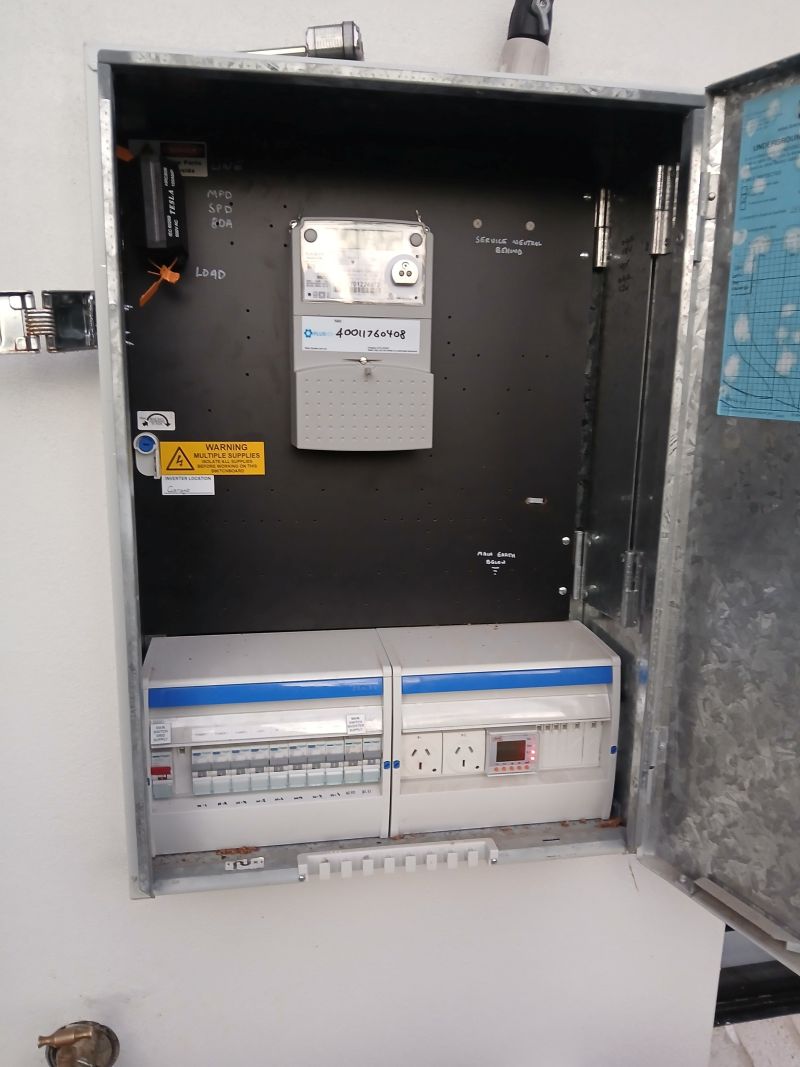

Create a Dedicated Sub-Board for Efficient Shed Power Management

Simply running a single cable to your shed is insufficient if you expect to plug in various devices without any additional infrastructure. Every shed receiving a proper power supply must be equipped with its own dedicated sub-board, often referred to as a distribution board. This setup acts as a mini switchboard within the shed, efficiently managing all electrical circuits to ensure safe operation and easy maintenance.

Your sub-board will typically include the following essential components:

• Main switch — This switch enables you to isolate all power to the shed independently from the main house, adding an extra layer of safety and convenience for maintenance tasks.
• RCDs (safety switches) — These devices are mandatory under NSW electrical regulations. They instantly cut the power within milliseconds if a fault occurs, which is crucial in a shed environment that often faces moisture, dust, and potential damage.
• Circuit breakers — These provide individual protection for each circuit in your shed, accommodating lighting, general power, and dedicated tool circuits to ensure you can operate multiple devices simultaneously without the risk of overloading.

If your house’s main switchboard is outdated, your electrician may also recommend upgrading the switchboard to handle the additional load directed to the shed, ensuring that all connections are safe and efficient.

What Key Equipment Should Be Installed Inside Your Shed for Optimal Functionality?

The specific installations carried out by your electrician inside the shed will be tailored to its intended purpose, ensuring that it meets your operational needs effectively. Here is a detailed breakdown of what these installations typically encompass to enhance usability and safety.

Enhancing a Basic Storage Shed Setup for Maximum Usability

For a shed primarily meant for storing tools, a ride-on mower, or general equipment, consider the following essential installations:

• LED batten lights — Installing one or two ceiling-mounted LED battens can effectively illuminate the entire space, making it easier to find and use your tools. Your trusted electrician can advise on the most suitable lighting layout based on the shed’s dimensions and your specific storage needs.

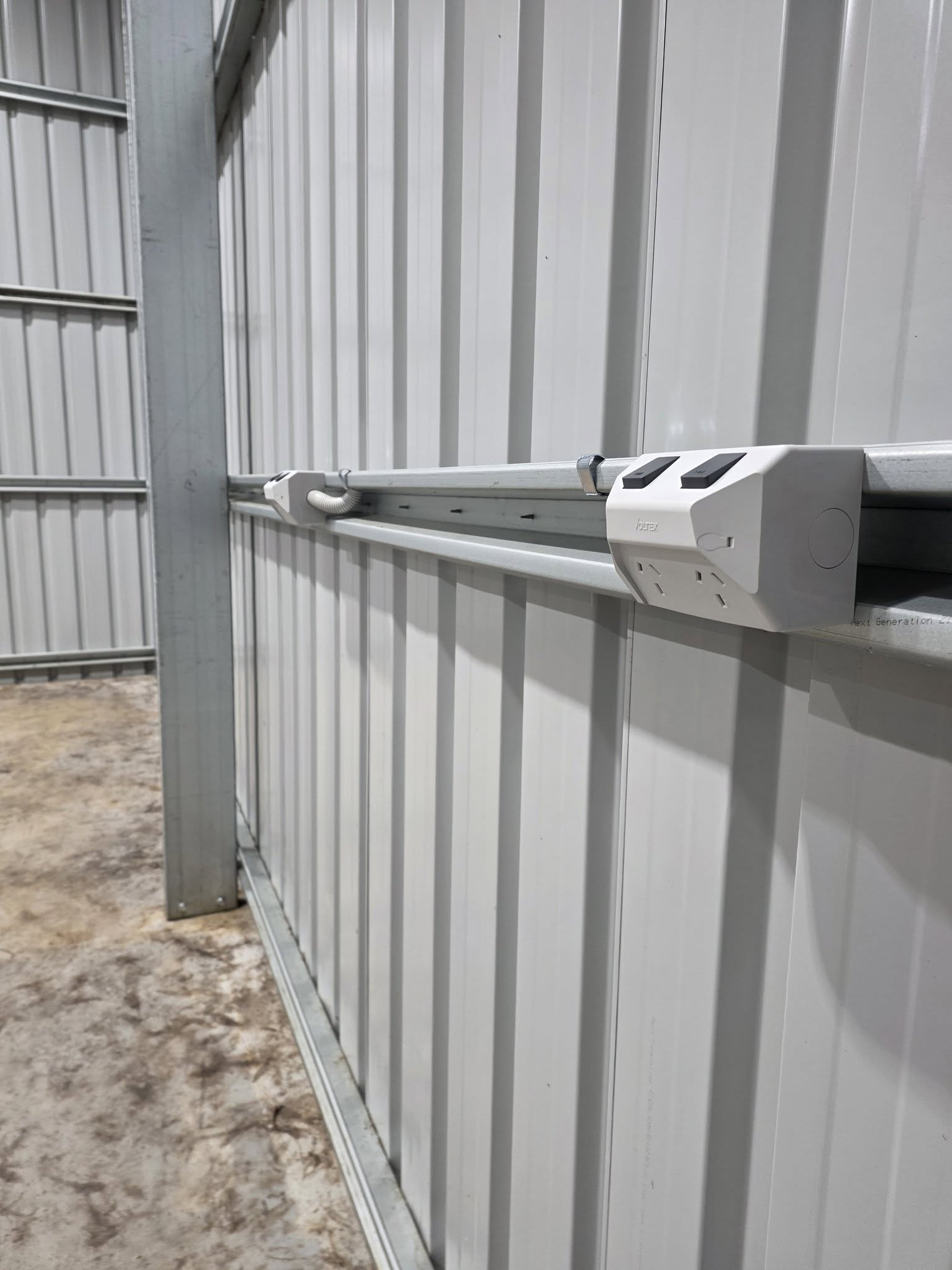

• Two to four general power points — This number is sufficient for plugging in chargers, radios, or a drop saw whenever needed. Standard power points and switches will operate on a single circuit, ensuring versatility for various tools and devices.
• External light — An outdoor-rated LED light above the door ensures that you can access the shed safely without fumbling in the dark, enhancing both safety and convenience during nighttime operations.

Designing a Powered Workshop Shed for Enhanced Efficiency

If you frequently use power tools such as drop saws, bench grinders, or dust extractors, your wiring requirements will extend beyond basic setups and require careful planning to ensure safety and efficiency:

• Multiple circuits — Create separate circuits for lighting, general power, and specialised power tool outlets. This configuration prevents the lights from flickering every time you activate a saw, maintaining a stable working environment that enhances productivity.
• Higher-rated power points — Install 15-amp or 20-amp outlets to effectively accommodate heavier tools, ensuring you have the appropriate power supply for your equipment and preventing potential overloads.
• Increased number of power points with optimal placement — Ensure outlets are positioned at bench height rather than only at skirting level, facilitating ease of use based on your workbench arrangement and enhancing accessibility.

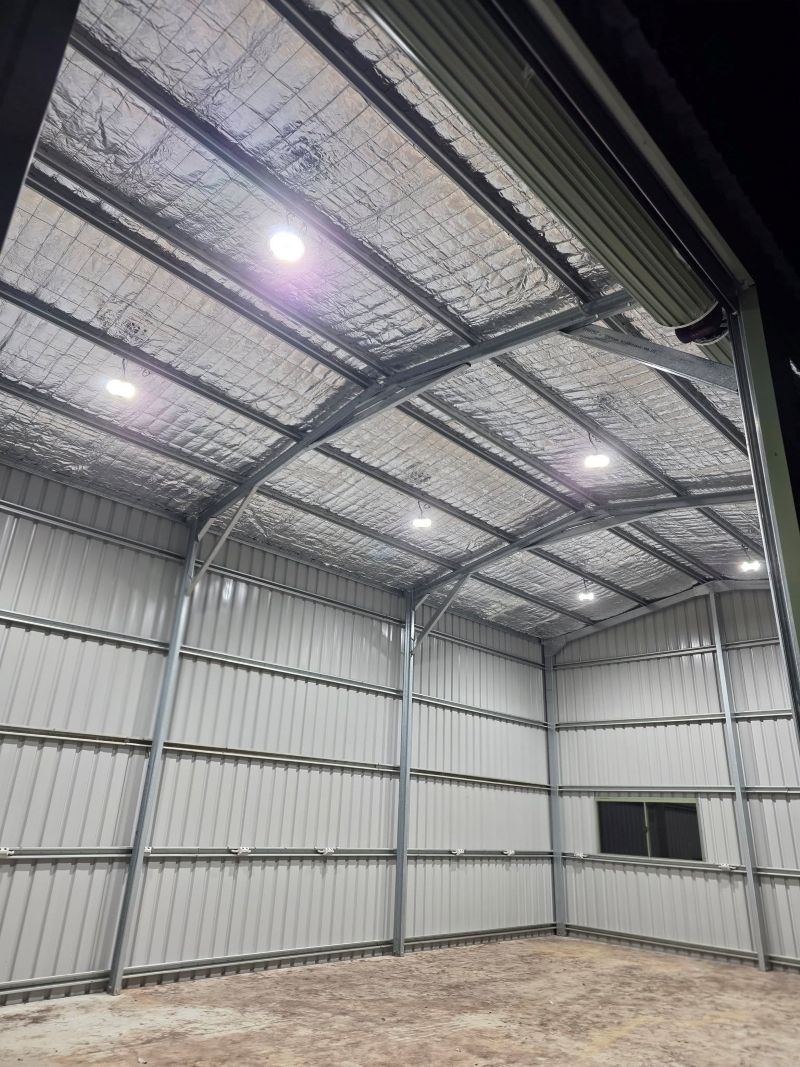

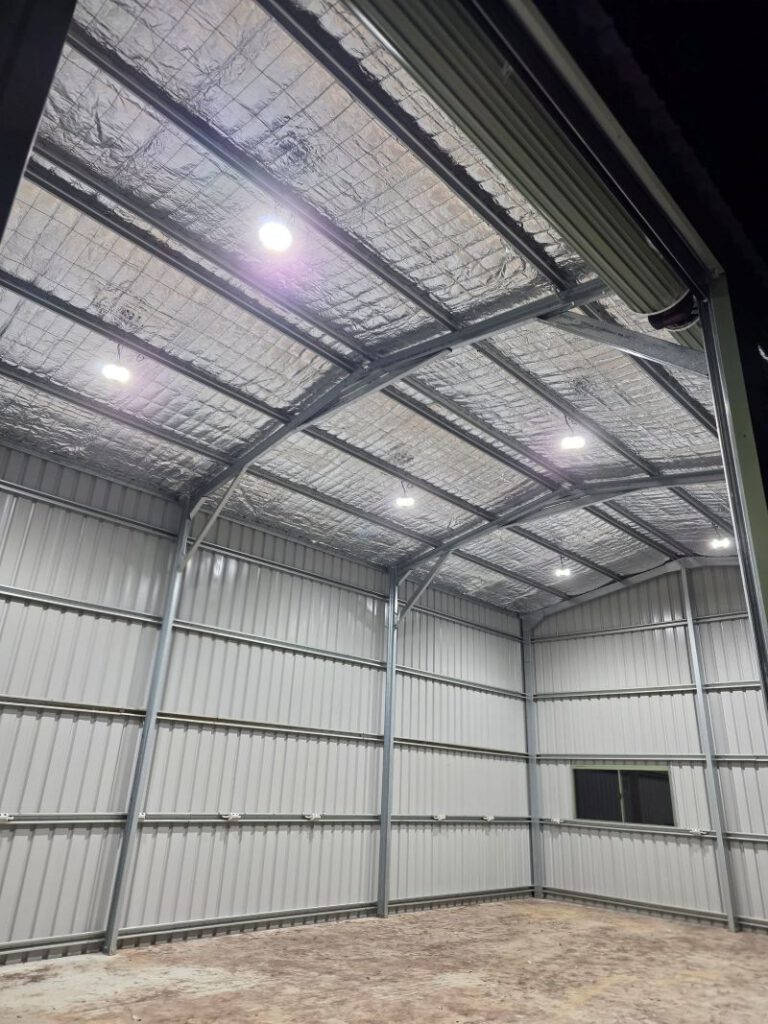

• Dedicated lighting — Provide brighter, targeted lighting over work areas, utilising LED high-bays for larger sheds to enhance visibility and safety during intricate tasks.

For comprehensive guidance on establishing dedicated circuits for heavy tools, check out Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which delves into the specifics of effective wiring solutions tailored to your workshop’s needs.

Equipping a Full Workshop with Essential Three-Phase Power for Heavy Machinery

If your activities involve heavy machinery such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying solely on single-phase power may not suffice. This is where three-phase power becomes essential for meeting your operational demands effectively.

Three-phase power offers a more stable and higher-capacity power supply, enabling you to operate multiple heavy-duty machines simultaneously without compromising performance. Your electrician will need to:

• Organise a three-phase supply from your energy distributor (this process can take several weeks in the Mid North Coast region, so plan accordingly).
• Install a three-phase sub-board in your shed, complete with the necessary breakers and RCDs to ensure safety and compliance with regulations.
• Utilise heavier cabling — Keep in mind that three-phase cable runs can be more expensive, especially over extended distances, so meticulous planning is crucial to managing costs.
• Set up three-phase outlets — These heavy-duty sockets are specifically rated for the equipment you plan to operate, providing the necessary power for effective functioning of your tools and machinery.

If you’re uncertain about whether you require three-phase power, read Do I Need Three-Phase Power on My Property? — this resource discusses when it is beneficial and when a properly configured single-phase system will suffice. Additionally, we provide full three-phase switchboard installation if that aligns with your needs for effective power management.

Invest in Essential Surge Protection to Safeguard Your Shed

Properties on the Mid North Coast often experience intense lightning storms. A direct or nearby strike can potentially damage everything in your shed, including tools, chargers, fridges, and any devices plugged in, leading to costly repairs and downtime.

Investing in a reliable surge protection device, installed within the sub-board, serves as inexpensive insurance against electrical surges. It absorbs voltage spikes before they can reach and damage your valuable equipment. For sheds containing costly tools or a workshop setup, this measure proves invaluable and could save you significant costs in repairs and replacements over time.

If your property also utilises a generator for backup power, your electrician can install a generator changeover switch, ensuring that both the shed and the house can safely switch to generator power during outages, maintaining critical operations during emergencies.

What Are the Requirements for Council Approval and Compliance in NSW?

Here are several important considerations to keep in mind regarding compliance and safety:

• All electrical work in NSW must be performed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to save on labour costs, all electrical work — including cabling, connections, and sub-board installation — must be handled by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion of the work.
• Depth of underground cable must comply with AS/NZS 3000 (the Wiring Rules), a standard your electrician will ensure compliance with during the installation process to guarantee safety.
• If the shed is newly constructed, you may need development approval depending on your local council and the size of the shed. While the electrical work itself might not require a separate permit, the overall construction may necessitate one depending on local regulations.

Hack-It Electrical Solutions proudly holds the NSW Electrical Contractor Licence #230609C. We provide a compliance certificate for every job we complete, ensuring peace of mind and adherence to local regulations.

Understanding the Costs Involved in Shed Wiring on Acreage Properties

Each shed presents unique challenges — including distance from the house, whether you require single-phase or three-phase power, the number of circuits needed, and soil conditions impacting trenching. Here’s a realistic cost guide for the Mid North Coast area to help you budget effectively:

• Basic shed wiring (lighting + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase power, dedicated circuits, and surge protection — Starting from $8,000+

Be mindful that longer cable runs (50m or more), rocky terrain requiring specialised equipment, or upgrades to three-phase supply will all increase costs. The most effective way to obtain an accurate estimate is to have your electrician visit your property, assess the cable route, and gain a clear understanding of your shed’s intended use and requirements to provide a comprehensive quote.

If you want a straightforward quote for your specific setup, feel free to call us at 0402 079 803 or contact us here.

Addressing Commonly Asked Questions About Shed Wiring in NSW

Can I Wire My Shed Myself in NSW Legally?

Absolutely not. All electrical work in NSW must be conducted by a licensed electrician. This includes tasks such as running cables to the shed, installing the sub-board, power points, lighting, and more. Engaging in DIY electrical work is illegal and poses significant dangers to you and your property. Your electrician will issue a Certificate of Compliance once the work has been completed, ensuring everything meets safety standards mandated by law.

How Deep Must Underground Cable Be Buried to Comply with Safety Standards?

According to the Australian Wiring Rules (AS/NZS 3000), underground cable installed in conduit should be buried a minimum of 500mm deep under normal conditions. If vehicles are expected to drive over the route, the cable must be buried deeper, typically around 600mm or more. Your electrician will determine the appropriate depth for your specific property circumstances, ensuring compliance with safety regulations and protecting the integrity of the installation.

Do I Need a Separate Meter for My Shed in NSW?

In most instances, the answer is no. The shed’s sub-board connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed serves as a standalone dwelling or commercial premises — this consideration involves discussions with both the council and your energy distributor to ensure compliance with local regulations and requirements.

How Long Does It Typically Take to Wire a Shed on Acreage?

A basic shed wiring job, which includes trenching, cable installation, sub-board setup, lighting, and power points, typically takes between one to two days once the trench is prepared. If you’re digging the trench yourself, your electrician can provide guidance on the precise route and depth before you begin. Keep in mind that three-phase jobs may take longer due to the need to arrange the supply connection with the distributor first to ensure everything is safe and compliant.

Can I Run Power From the Shed to Other Buildings on My Property?

Yes, you can. However, each additional building will require its own appropriately rated cable run and may need its own sub-board depending on the load. Your electrician can design a comprehensive layout across multiple buildings to ensure that the cabling and switchboard capacity are sufficient from the outset, rather than trying to add components later and potentially creating issues with power distribution.

Ensure Your Shed Wiring is Done Right with Professional Assistance

If you are situated on acreage near Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere across the Mid North Coast, Hack-It Electrical Solutions is here to assist you in setting up your shed correctly — whether it involves a basic lighting and power setup or a comprehensive three-phase workshop installation tailored to your specific needs.

Give us a call at 0402 079 803 or reach out through our website to schedule a site visit. We will survey your property, determine the optimal cable route, and provide you with a straightforward quote that meets your requirements, ensuring your project is completed safely and efficiently.
