Dedicated Circuits for Heavy Tools in Workshops

As the owner of a shed on a rural property, transforming it into a fully functional workshop necessitates a focus on the electrical system. Operating equipment like a MIG welder, air compressor, and table saw on the same circuit as your home can cause serious problems, such as tripped breakers, flickering lights, and dangerous overload situations.

This detailed guide delves into the key aspects of wiring a powerful workshop in the rural areas of the Mid North Coast. We will cover important topics like dedicated circuits, sub-boards, and the advantages of three-phase power for larger machinery. If your requirements are limited to basic power for your shed—such as lighting and a few outlets—please refer to our guide on Shed Wiring on Acreage for a more appropriate starting point. This article is tailored for workshops that demand substantial power.

Recognise the Significance of Dedicated Circuits for Your Workshop

Typically, residential properties use multiple power points on shared circuits, which works well for low-power devices like kettles and televisions. Problems arise when trying to run a 32-amp MIG welder and an air compressor simultaneously. This scenario can result in serious electrical complications.

Consider the potential issues with using heavy machinery on household circuits:

• Frequent tripped breakers — A welder drawing over 30 amps on a 20-amp circuit will immediately trip the breaker or, worse, cause the wiring to overheat before the breaker can respond.
• Voltage drops — Long cable runs from the main board to the shed can cause voltage sag, leading to tools operating at higher temperatures, reduced speeds, and shortened lifespans.
• Power disruptions in the house — Your partner may find themselves in darkness in the kitchen because you activated the compressor, often sparking unwanted discussions.
• Increased fire hazards — Overloaded wiring within walls and cable runs frequently leads to electrical fires in rural settings.

Establishing dedicated circuits effectively resolves these issues. Each heavy tool is assigned its own circuit, correctly sized for its load, along with its own breaker protection. This ensures that nothing is shared, preventing any overloads.

Evaluate the Power Needs of Common Workshop Tools

Before your electrician can design an appropriate circuit layout, understanding the power requirements of your equipment is crucial. Here’s a detailed overview of typical power consumption for common workshop tools:

• MIG welder — Requires between 15A and 32A, depending on the model. Larger 240V welders generally fall at the higher end. Three-phase units have different specifications (more on that later).
• Air compressor — Draws approximately 10A to 15A. The startup surge can be considerable, as compressor motors often pull three to four times their running current for a few seconds during startup.
• Table saw — Typically consumes 10A to 15A for a quality cabinet saw. More affordable contractor saws may require less power, but you’re unlikely seeking a budget option.
• Lathe (wood or metal) — Similar to table saws, these generally require between 10A and 15A, with metal lathes usually on the higher side.
• Dust extractor — Approximately 10A for a single-phase unit. It should operate continuously while using other tools, necessitating its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, and also requires a dedicated circuit.

When you sum the total power draw, it’s clear that a single 20-amp circuit from the house will not be adequate. A well-equipped workshop can easily demand 80 to 100+ amps across all circuits when operating at full capacity, underscoring the need for careful planning.

Select the Appropriate Circuit Breaker Size and RCD Protection for Safety

Every circuit in your workshop requires a breaker that matches the cable size and expected load. Your electrician will determine this based on your equipment, but as a general guideline:

• 15A or 20A circuits — Suitable for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Necessary for welders, plasma cutters, and other heavy single-phase machines.
• Three-phase breakers — Sized according to the specific equipment requirements (details below).

RCD protection is crucial. According to AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must have RCD (safety switch) protection. This requirement is mandatory; it is a legal obligation designed to mitigate the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture increase the likelihood of earth faults. RCDs immediately disconnect power if a current leak occurs, which can be the difference between a minor shock and a serious injury.

Typically, your electrician will use a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that provide both functionalities. RCBOs are particularly advantageous in workshops because a fault on one circuit does not disrupt power to others, improving safety and reliability.

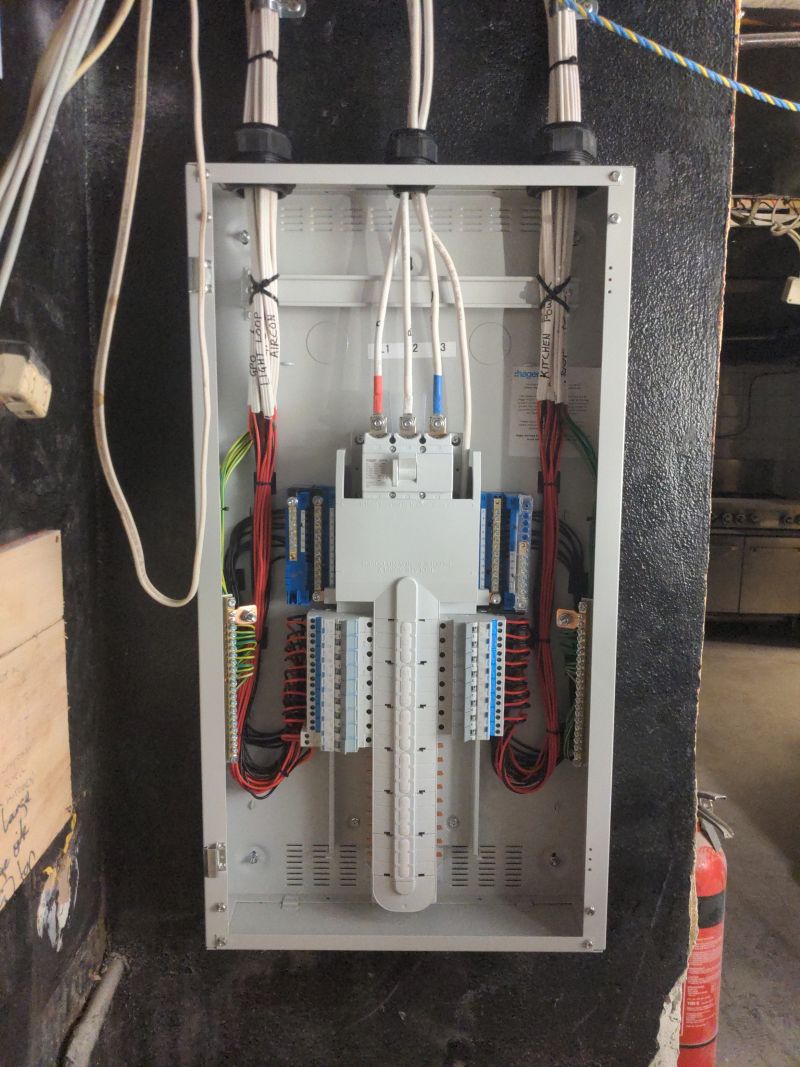

Install a Dedicated Sub-Board for Your Workshop’s Electrical Requirements

Instead of running multiple individual cables back to the main switchboard, a dedicated sub-board in your workshop offers a more efficient solution. Here are the benefits:

• Shorter cable runs — A single heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This setup reduces voltage drop and decreases cable costs.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible in the workshop. If a breaker trips, you won’t need to walk back to the house to reset it, saving time and effort.
• Future expansion — A properly sized sub-board accommodates additional circuits in the future, making it easy to add new tools as your workshop evolves.
• Isolation capability — You can cut off all workshop power from a single main switch without affecting the house’s electricity, enhancing safety during maintenance.

If your house switchboard is outdated or already operating at full capacity, an upgrade may be necessary before effectively powering the workshop sub-board. Older ceramic fuse boards may not safely handle the increased load.

A standard workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total anticipated load plus a buffer for future additions, ensuring optimal performance and safety.

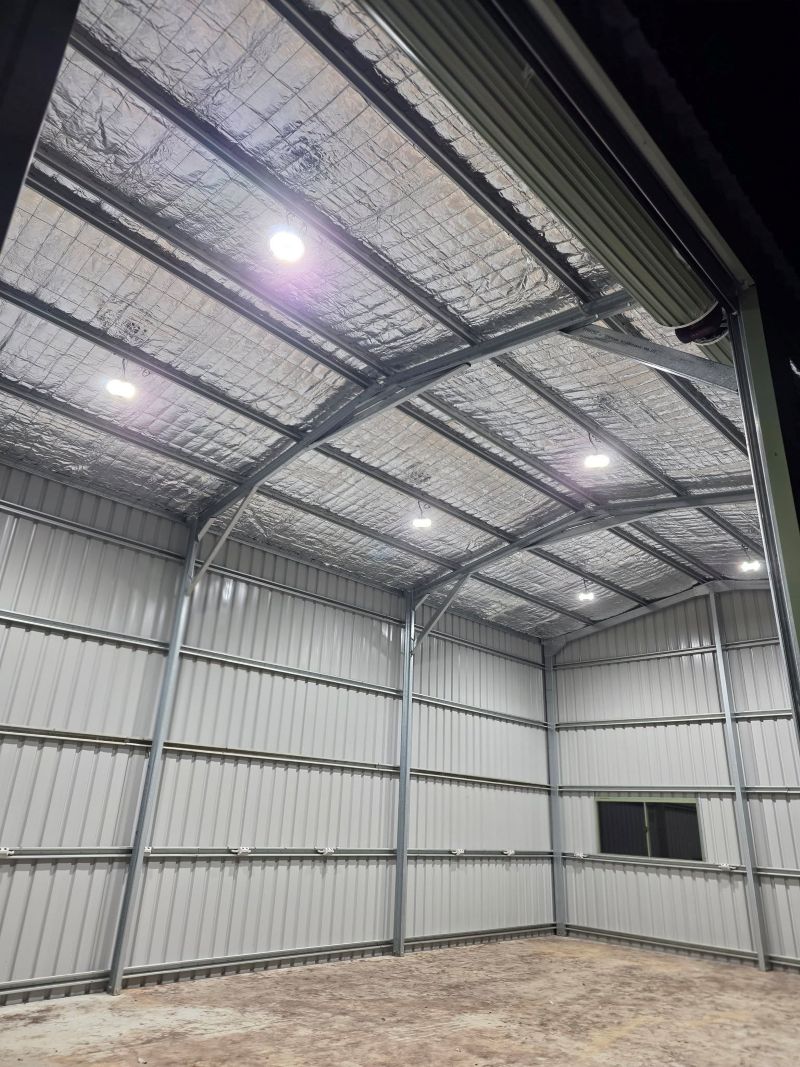

Guarantee Your Workshop Has Adequate Lighting for Safety and Efficiency

Sufficient lighting is essential for safety in your workshop. Clear visibility is crucial, especially around sharp blades and hot materials. Here are key lighting considerations:

• High-lumen LED battens — LED panels or battens provide bright, even illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure clarity.
• Dust-proof fittings — Regular lights can become obstructed with sawdust and metal shavings. Opt for IP-rated fittings resistant to dust and moisture for improved longevity and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is essential for precision work and safety.
• Separate lighting circuit — Lighting should operate on an independent circuit, ensuring you still have light if a power circuit trips. Being left in darkness beside a running table saw presents a significant safety risk.

We have extensive experience with lighting layouts in commercial environments. Our team can assist you in crafting a workshop lighting plan that significantly improves your working environment and safety.

Design Efficient Ventilation and Dust Extraction Circuits

When engaging in activities such as woodworking or welding, ensuring proper ventilation is just as crucial as having sufficient power. Dust extraction systems and exhaust fans require their own dedicated circuits for several reasons:

• Continuous operation — Your dust extractor must run whenever you’re cutting. It cannot share a circuit with the tool it serves, as this compromises both efficiency and safety.
• Motor startup loads — Dust extraction fans and collectors experience significant startup surges, similar to compressors, thus necessitating dedicated circuits.
• Interlocked switching — In a well-designed workshop, the dust extractor can be wired to activate automatically when specific tools are powered on. This requires careful circuit design to ensure functionality.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation. If you’re using a cyclone-style dust collection system, it might require a 20A circuit based on motor specifications, ensuring efficiency in maintaining air quality.

Utilise Three-Phase Power for Improved Heavy Equipment Performance

When you engage in intensive metalwork or operate large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may fall short. Three-phase power provides numerous advantages:

• Increased power capacity — Three-phase motors are more efficient and deliver greater power without the excessive startup surges common with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power for optimal functionality.
• Smoother operation — Three-phase motors run more smoothly and remain cooler, extending the lifespan of your tools and machinery.

Accessing three-phase power in rural locations on the Mid North Coast depends on its availability at the street level. Some properties already have a three-phase supply, while others may need a phase converter or a new connection from Essential Energy.
For further details, consult our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is available, your workshop will require the installation of a three-phase switchboard with correctly rated breakers and an effective earthing system to guarantee safety and reliability.

Implement Surge Protection to Safeguard Your Equipment

Tools equipped with electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are vulnerable to voltage spikes. Each time a large motor starts or stops, your workshop generates surges. Combined with the voltage instabilities often found in rural power lines, your valuable equipment faces significant risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they impact your tools. This is a cost-effective measure compared to replacing the electronic components of a $3,000 welder or a CNC controller, helping you protect your investment.

If your property is prone to storms (common in the Mid North Coast), we recommend adding surge protection at the main switchboard to guard against lightning-induced surges that could damage your equipment.

For properties relying on a generator for backup power, incorporating a generator changeover switch ensures smooth transitions between mains power and generator supply without risking back-feeding or damaging connected equipment. This provides peace of mind during power outages.

Consider Additional Features for Your Workshop Electrical Setup

Here are several more elements to consider including in your workshop wiring from the beginning:

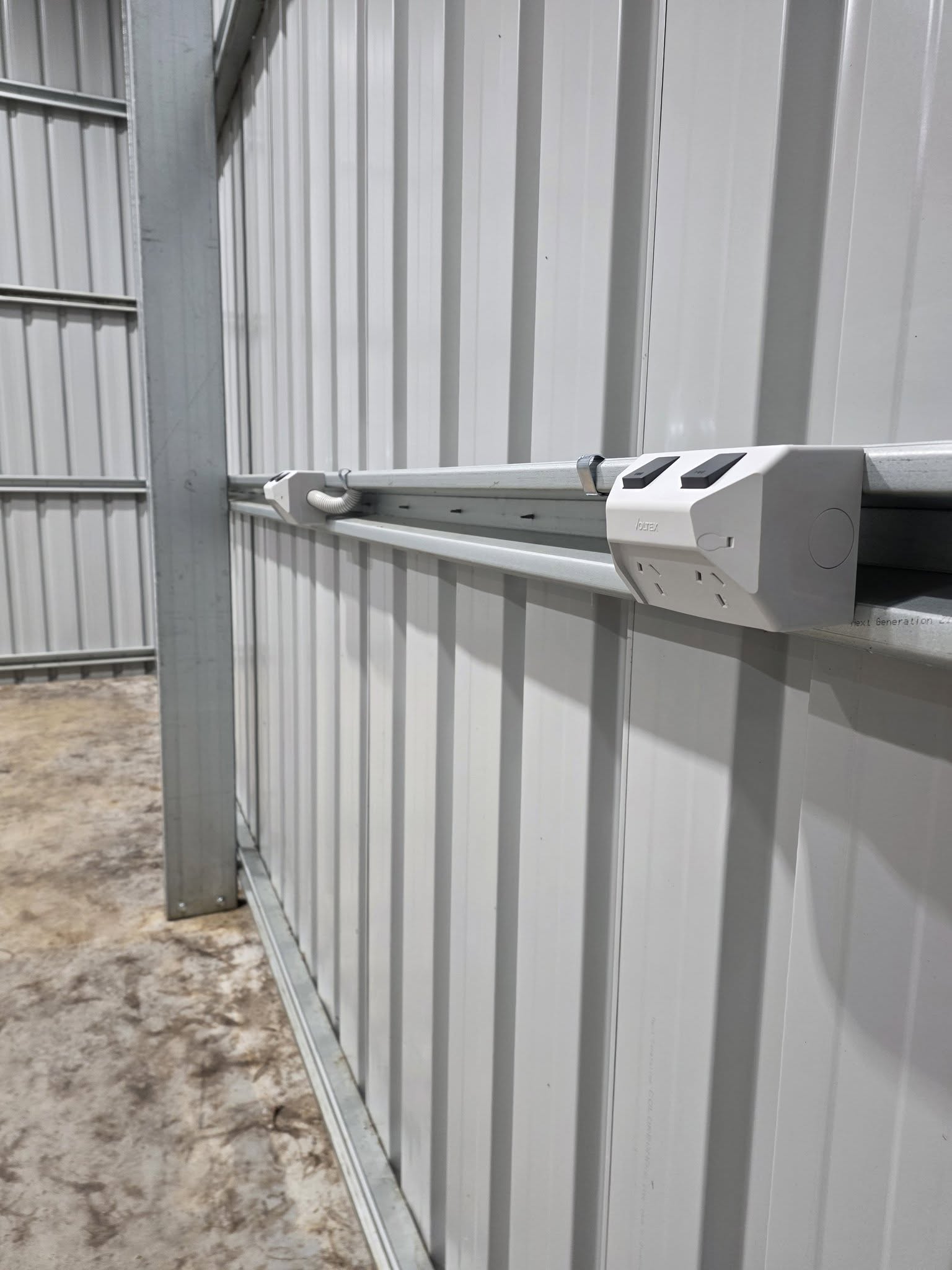

• Ample power points — Install more power points and switches than you anticipate needing. Use weatherproof GPOs if the workshop is open-sided, ensuring durability. Consider double power points at every bench and outlets at key machinery locations to enhance accessibility.
• Data and communications — If you need internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. Running cables during the initial fit-out is far easier than after the walls are finished, preventing future complications.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, especially in rural areas lacking street lighting, enhancing safety.
• EV or equipment charging — If you use electric equipment (battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets, ensuring efficient operation of all devices.

Accurately Estimate the Cost of Your Workshop Electrical Fit-Out

Cost estimates will vary based on workshop size, the number of circuits required, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000, providing fundamental electrical support.
• Comprehensive dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000, ensuring ample capacity for serious workshop needs.
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+, accommodating extensive power requirements.

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the need for upgrades from Essential Energy will increase costs. We provide transparent quotes based on your specific workshop and equipment needs—no hidden fees, ensuring you know exactly what to expect.

Important Reminder: All Electrical Work Must Be Conducted by Licensed Professionals

This is a crucial point. In New South Wales, all electrical wiring work must be performed by a licensed electrician. This includes installing new circuits, sub-boards, power points, and connecting equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C. We operate throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina, ensuring quality service.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to fines. If someone offers to do the work cheaply without a licence, it’s not a saving—it’s a risk that can have serious repercussions.

Frequently Asked Questions About Workshop Electrical Needs

Can I Use My Welder with a Standard Power Point?

Small stick welders (up to around 140A output) can be operated with a standard 10A or 15A power point. Any larger units require a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately—or potentially cause the wiring to overheat if the breaker is faulty. If you weld regularly, it’s essential to have a dedicated 32A circuit installed to ensure safe operation.

How Many Circuits Are Generally Required in a Workshop?

The number of circuits needed depends on your tools, but a well-equipped workshop typically requires a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, as well as a couple of spares for future expansions. We tailor the design based on your specific equipment list, ensuring you have everything you need.

Is Three-Phase Power Necessary for a Home Workshop?

Not necessarily. Most home workshops function adequately on single-phase power with dedicated circuits. Three-phase power becomes essential only if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Refer to our complete guide on Do I Need Three-Phase Power on My Property? to determine if it suits your needs, ensuring you make an informed decision.

Can My Existing Switchboard Support a Workshop?

It’s possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. We will assess this during the quoting process to ensure everything is compliant.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can typically be completed within 1 to 2 days. A comprehensive fit-out encompassing multiple heavy circuits, three-phase power, and extensive lighting generally takes 3 to 5 days, depending on the complexity and distances of cable runs. We will provide a timeline along with your quote, ensuring you know what to expect.
